異形眼模 Shaped Dies

異形模的作用是將圓形(或其他形狀)的金屬絲改變成特定形狀。異形眼模利用壓力加工金屬,可用於拉絲機和擠出機。異形模的製作工藝和加工圓形金屬絲的其他模具相同。

Make wire in any shape 製作任何形狀的線材

根據您的要求進行定制,幾乎可以任何形式提供。此外,我們可以幫助您設計一系列模具,這些模具將逐漸將您的線材或棒材從一種形狀轉變為另一種形狀。高性能形狀的模具使線材製造商能夠滿足線材表面質量和尺寸標準。

異形眼模用於減小直徑或將一種線形狀轉換成另一種形狀。應用包括各種類型的黑色和有色金屬棒和電線。

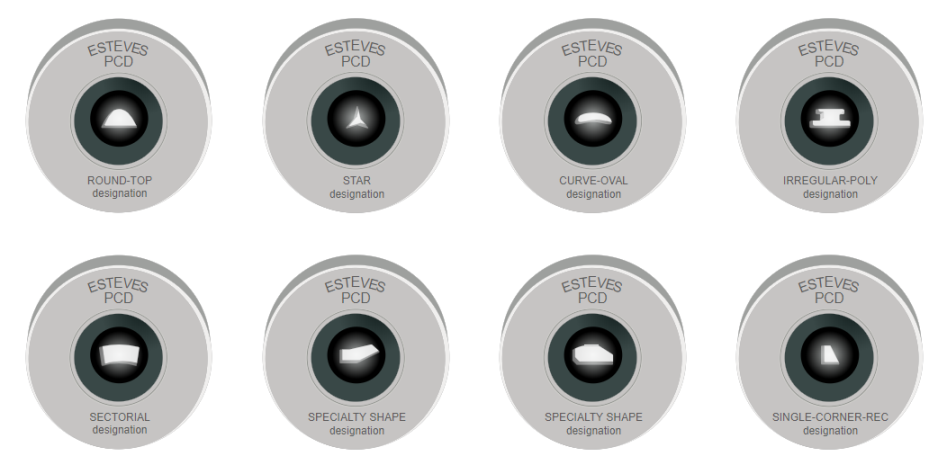

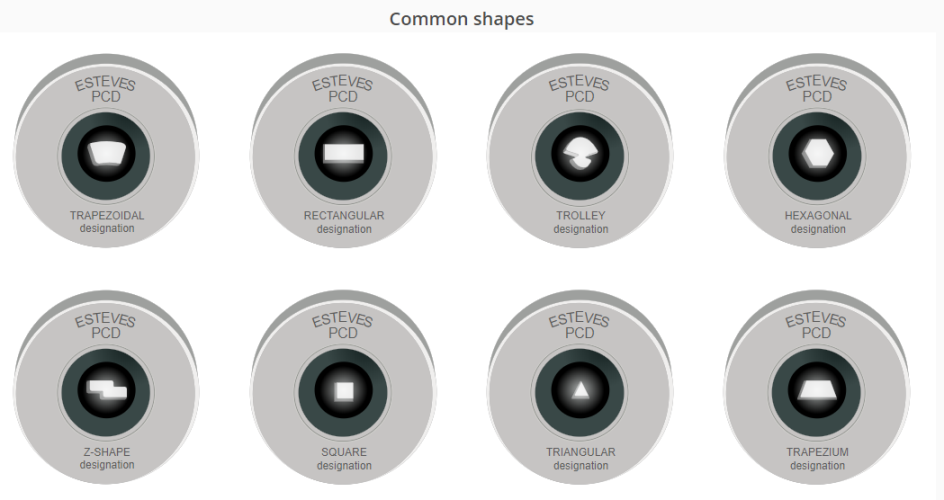

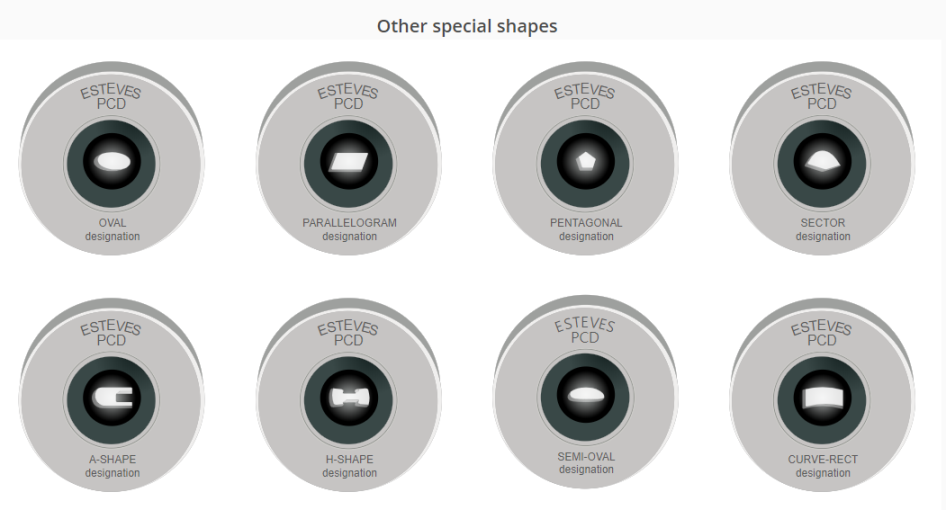

Esteves Group異形眼模可根據您的要求進行定制,幾乎可以任何形式提供。形狀包括梯形、矩形、小車、六角形、Z形、正方形、三角形、梯形、橢圓形、半圓形、三葉形、傳輸電纜形狀和電車線(幾乎任何形狀都可用)。

我們可以幫助您設計一系列模具,這些模具將逐漸將圓形或成形的線材或棒材轉變為另一種形狀。讓我們知道您的成型棒或線材要求,讓我們的工程團隊為您設計系列。

E
steves Group異形眼模採用鏡面拋光和光滑的線材製造,確保最佳的模具壽命和伸線。

自華光電 - 荷蘭Esteves Group鑽石眼模/異形鑽石眼模台灣獨家代理商。
Allen K. Lin | Allen@myblossom.tw | LINE ID: Allen-007 | Wechat ID: Allen-006 | T: 0910-782775



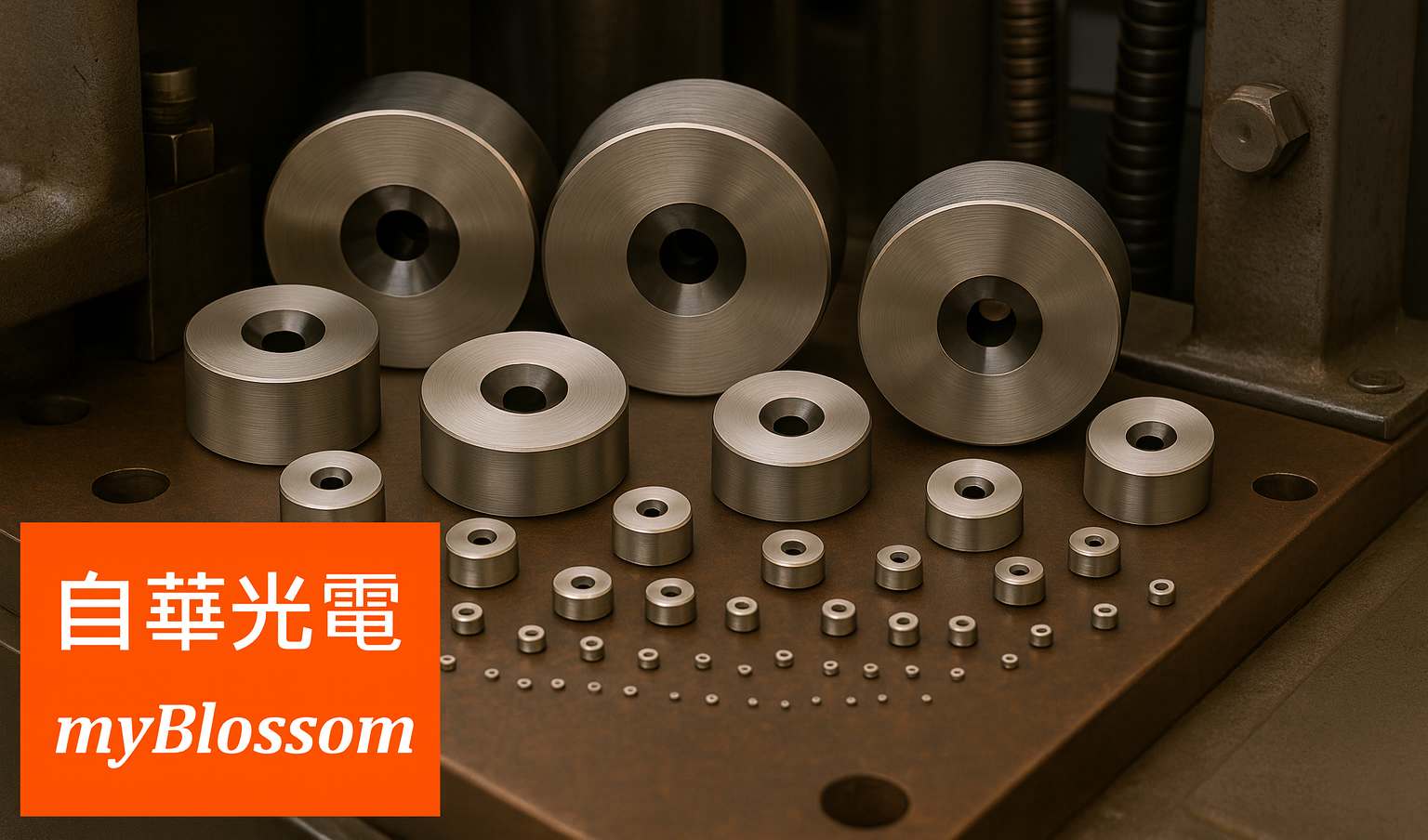

Shaped Dies

Features

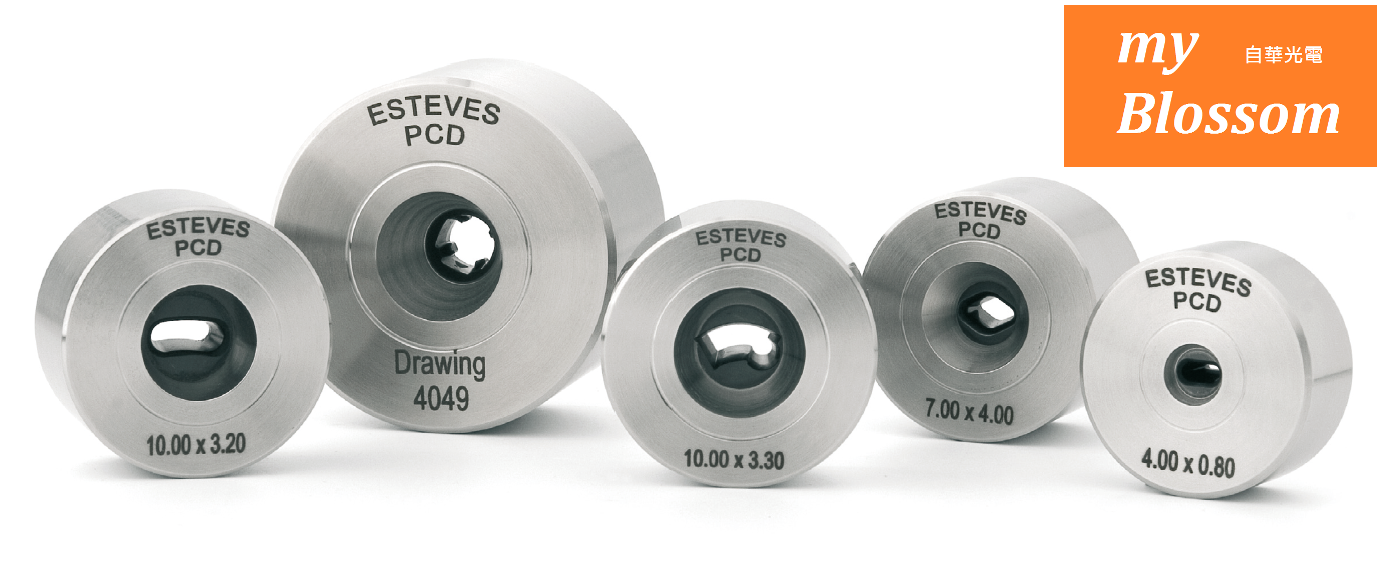

Are dies with any shape to transform round (or shaped wire) to shaped wire. Shaped dies are used in both drawing and extrusion machines where material is forced under pressure through the die. These dies are constructed in the same way as dies for round wire.

Blank (Nib) material
Shaped dies can be made of tungsten carbide (TC) and can also be made of polycrystalline diamond (PCD).

Casing
Stainless and cold rolled steel.

Dimensions depend on the size of the holder in the machine.
Sizes generally range from 25 mm to 75 mm (1” to 3”).

Geometry
The minimum size of shaped dies is limited by the wire size of a spark erosion machine. These machines are used to cut the shape and profile in the die.

The shape is also restricted by the ability to polish the finished profile.
The size of large shaped dies is only limited by the size of the blank and the capabilities of the machine it is used in.

The size tolerance is generally plus or minus 1% of the size.
Angle range is generally 6 to 24 degrees plus or minus 1 degree.
The radiuses and blend of shaped dies vary widely and depend on the application and specifications of the customer.
