自華光電®陶瓷平面加熱器 myBlossom® Ceramic Flat Heating Elements4
https://www.myblossom.tw/ 自華光電有限公司
Missing parameters [image]

Links:https://www.bachrc.de/ceramic.html?language=en



氮化矽製成的平面加熱元件通常是矩形的。 可以生產各種尺寸和批量,直至我們的模具直徑為400毫米。 陶瓷的特殊性質和低質量使得加熱速度快,溫度分佈均勻,控制精度高。 小型加熱元件可以在短週期內以非常高的表面功率運行。 與金屬加熱器相比,即使在溫度變化的情況下,陶瓷的表面由於其低的熱膨脹而保持非常光滑。 熱壓氮化矽的高強度保證了高應力耐受性(例如高壓負荷)和優異的耐磨性。 我們提供平面加熱元件,可以在高達500°C的溫度下在空氣中運行。 通過開發具體的技術解決方案,可以達到1000°C(如果需要)的溫度。


客製化設計 Customized design
我們的內部設計使尺寸,配置或性能的任何修改變得簡單和方便。 可以包括用於溫度傳感器的安裝支架孔和孔。 激光切割真空槽也可以添加。 我們的平面加熱元件已經是平坦的地面,然而他們可以進一步研磨到<10μm的平面度以滿足特定的要求。 也可以形成各種形狀的待加工產品或工具的輪廓。 此外,我們的陶瓷加熱導體與其定制設計允許集成多個加熱區域。 可以輕鬆地內置用於補償熱損失的器件和用於溫度測量的內部RTD。

平面加熱器 Ceramic Flat Heating Elements
陶瓷平面加熱器 Ceramic Flat Heating Elements
標準陶瓷平面加熱器 Standard Ceramic Flat Heating Elements
半導體陶瓷平面加熱器 Semiconductor Ceramic Flat Heating Elements
陶瓷加熱器 Ceramic Heating Elements 陶瓷加熱元件
半導體陶瓷平面加熱元件 Flat heating elements


自華光電 - 德國BACH陶瓷加熱器 台灣獨家代理商。
Allen K. Lin | Allen@myblossom.tw | LINE ID: Allen-007 | Wechat ID: Allen-006 | T: 0910-782775

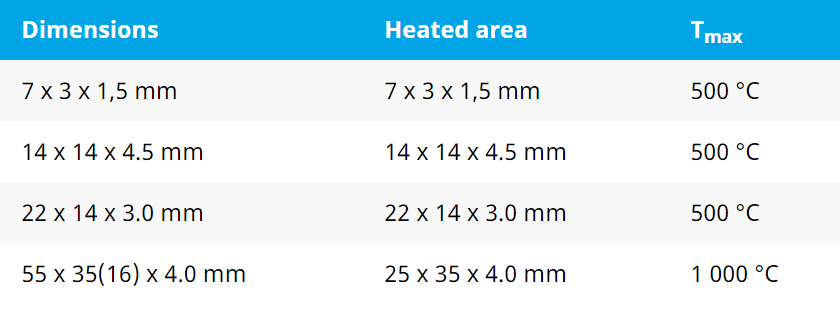

Flat heating elements

Flat heating elements made of silicon nitride are normally rectangular. Various measurements and batch sizes up to our mold diameter of 400 mm can be produced. The special properties and the low mass of ceramic allow fast heating rates, a uniform temperature distribution and high control accuracy. Small heating elements can be operated with very high surface power at short cycle times. In comparison to metallic heaters the surface of ceramic stays very smooth due to its low thermal expansion even when operated with changes in temperature. The high strength of hot-pressed silicon nitride guarantees high stress resistance (e. g. with high pressure loads) and excellent wear resistance. We provide flat heating elements for operating in the air at temperatures up to 500 °C. Temperatures up to 1 000 °C (if required) could be achieved by developing specific technical solutions.
Customized design

Our in-house designs make any modification in size, configuration, or performance simple and convenient. Mounting-bracket holes and bores for temperature sensors can be included. Laser-cut vacuum grooves can be added as well. Our flat heating elements come already flat ground, however they can be ground further up to a flatness of < 10 μm to meet specific requirements. A variety of shapes formed to the contour of the product or tool to be heated are possible as well. Furthermore, our ceramic heating conductor with its customized design allows the integration of several heating zones. Devices to compensate for heat loss and an internal RTD for temperature measurement can be easily built in.
