聚晶鑽石伸線眼模/聚晶金剛石拉絲模具 - Polycrystalline diamond wire dies (PCD dies)

伊斯特偉斯集團(Esteves Group)生產應用於有色金屬和非有色金屬拉絲行業的聚晶金剛石模具,尺寸範圍從0.04 到 35毫米(.00157 – 1.378 英寸),涵蓋從超微拉到大拉的所有應用範圍。

與伊斯特偉斯集團其它產品一樣,聚晶金剛石模具的製造過程嚴格執行一貫的高品質、高精度的標準。

聚晶金剛石,簡稱PCD, 是一種人工燒結而成的金剛石,可用於所有的濕拉和幹拉工藝。聚晶金剛石胚料主要分三種類型:無加強環型,帶加強環型和熱穩定型。

對於每一種類型,都可根據線材表面品質要求選擇顆粒度從1到50微米的PCD料胚。

所有PCD料胚裡的金剛石顆粒都是自由排列的,這使得每個PCD模具的磨損都是均勻的,確保線材的圓整度。

請讓我們經驗豐富的銷售人員根據您的實際應用情況,幫您選擇最適合,性價比最高的模具料胚。如果您希望指定使用日本住友或者美國康派的PCD料胚,也請告訴我們。

伊斯特偉斯集團PCD模具的優勢
• 全尺寸範圍,適用於從大拉到超微拉的所有應用範圍
• 適用於濕拉和幹拉工藝
• 可預期的線材表面品質
• 金剛石晶體的自由排列,使得線材即使在模具磨損嚴重的情況下仍能保證較好的圓整度
• 料胚的尺寸得到保證,獲得可預期的最大擴孔尺寸

Esteves Group 伊斯特偉斯集團,全球模具公司:

飛利浦鑽石工具公司,西班牙伊斯特偉斯模具公司,美國迪凱特線模公司及UKD模具公司這四家因高品質及高精度模具產品而享譽全球的公司走到了一起。

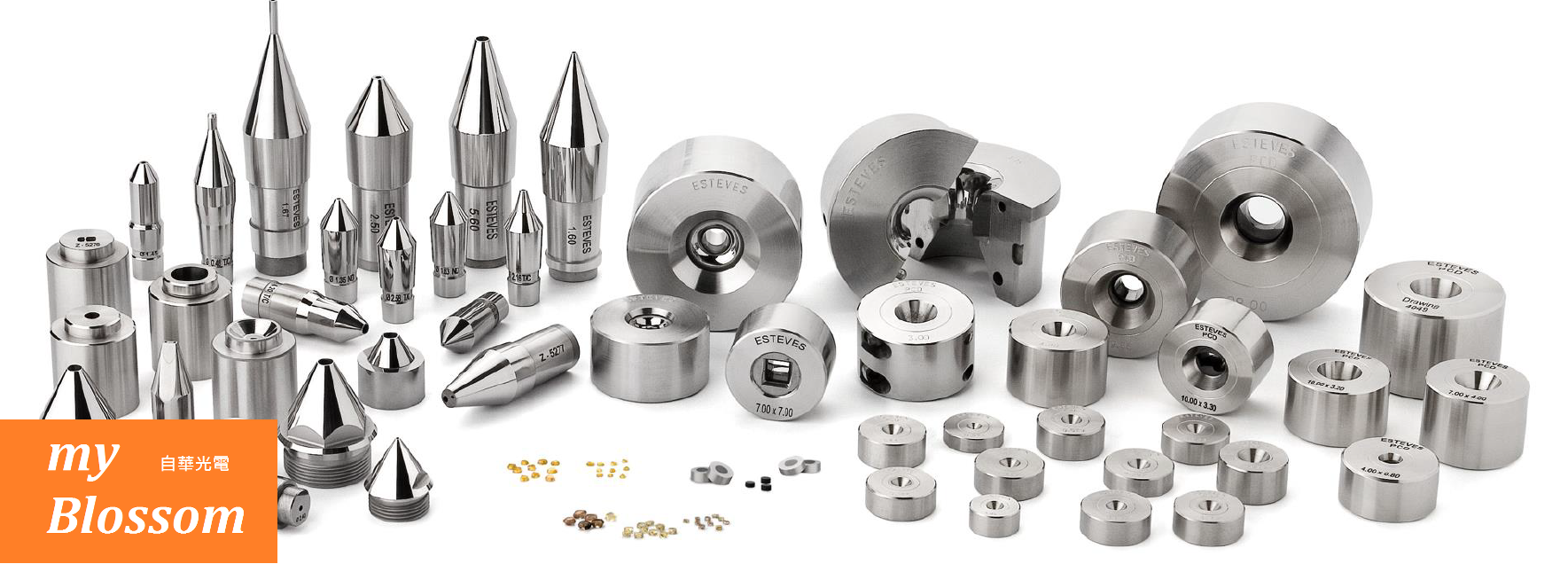

聚晶鑽石眼模、合成單晶鑽石眼模、天然鑽石眼模具、鎢鋼模、擠出工具、導向模、束線模/絞線模、拼合模、異型眼模。


自華光電 - 荷蘭Esteves Group鑽石眼模台灣獨家代理商。

Allen K. Lin | Allen@myblossom.tw | LINE ID: Allen-007 | Wechat ID: Allen-006 | T: 0910-782775





Diamond dies - Polycrystalline diamond wire dies (PCD dies)

Esteves Group is a manufacturer of diamond wire dies with polycrystalline diamond (PCD) blanks that can be used for ferrous and non-ferrous wire drawing applications. Sizes are available for drawing applications ranging from ultra-fine wire to large drawn rod. This size range includes, but is not limited to, 0.040 to 35 mm (.00157 - 1.378").

Like all products from Esteves Group, these products are manufactured with the highest quality and accuracy standards.

Polycrystalline diamonds, abbreviated as PCD, are man-made sintered diamonds and can be used for almost any type of wet or dry wire drawing application and are available in three main groups: unsupported and supported metal filled, and thermally stable.

For each group, several PCD blanks are available that match your wire surface finish needs as they are offered in diamond grain sizes ranging from 1 to 50 microns.

All PCD blanks contain randomly oriented diamond particles. The result is a perfectly round wear pattern for each die, ensuring that your wire remains round.
Let our experienced sales staff help you choose the most cost-effective or readily available diamond blank for your application or let us know if you specifically need a Sumitomo-Sumidia or Diamond Innovations-Compax PCD blank.

Key benefits of Esteves Group PCD diamond wire dies
• Available for almost any type of wire drawing operation, from rod-size to fine-size
• Can be used for wet and dry drawing applications
• Predictable wire surface quality
• Contain randomly oriented diamond crystals, making certain that wire remains round; even with significant wear the wire remains round
• Blank dimensions are guaranteed, hence maximum recut dimensions can be predicted
