半導體陶瓷熱板 Ceramic hot plates
由氮化矽製成的陶瓷熱板可以以400mm的外徑製造。在此直徑內,任何矩形形狀,定制的形狀或開口都是可能的。板的典型高度是5mm。陶瓷材料的特殊性質和低質量允許快速加熱速率,均勻的溫度分佈和出色的控制精度。與金屬相比,陶瓷材料表面由於其低熱膨脹而保持平坦,即使在溫度快速變化的情況下也是如此。熱壓氮化矽的高強度保證了高應力耐受性(例如高壓負荷)和優異的耐磨性。我們提供在高達500°C的溫度下在露天運行的熱板。通過開發具體的技術解決方案,可以達到1 000°C的溫度。然而,如果在> 900°C的溫度下連續運行,則預計有限的使用壽命為2 500個工作小時,而即使在1000°C的高真空下運行,磨損也非常低。

定制設計 Customized design
我們的內部設計使尺寸,配置或性能的任何修改變得簡單和方便。用於溫度傳感器的安裝支架孔和孔可以添加到設計中。激光切割真空槽也可以添加。我們的熱板已經是平坦的地面,然而他們可以進一步研磨到<10μm的平面度以滿足特定的要求。也可以形成各種形狀的待加工產品或工具的輪廓。此外,我們的陶瓷加熱導體與其定制設計允許集成多個加熱區域。用於補償熱損失的器件和用於溫度測量的內部測試引線可以很容易地內置。為了在高達1000°C的高真空下工作,可以提供引腳觸點。

板形加熱器 Ceramic Hot Plates
陶瓷板形加熱器 Ceramic Hot Plates
標準陶瓷板形加熱器 Standard Ceramic Hot Plates
半導體陶瓷板形加熱器 Semiconductor Ceramic Hot Plates
陶瓷加熱器 Ceramic Heating Elements 陶瓷加熱元件
半導體陶瓷熱板 Ceramic hot plates



自華光電 - 德國Bach-RC陶瓷晶片加熱器 台灣獨家代理商。
Allen K. Lin | Allen@myblossom.tw | LINE ID: Allen-007 | Wechat ID: Allen-006 | T: 0910-782775





Hot plates

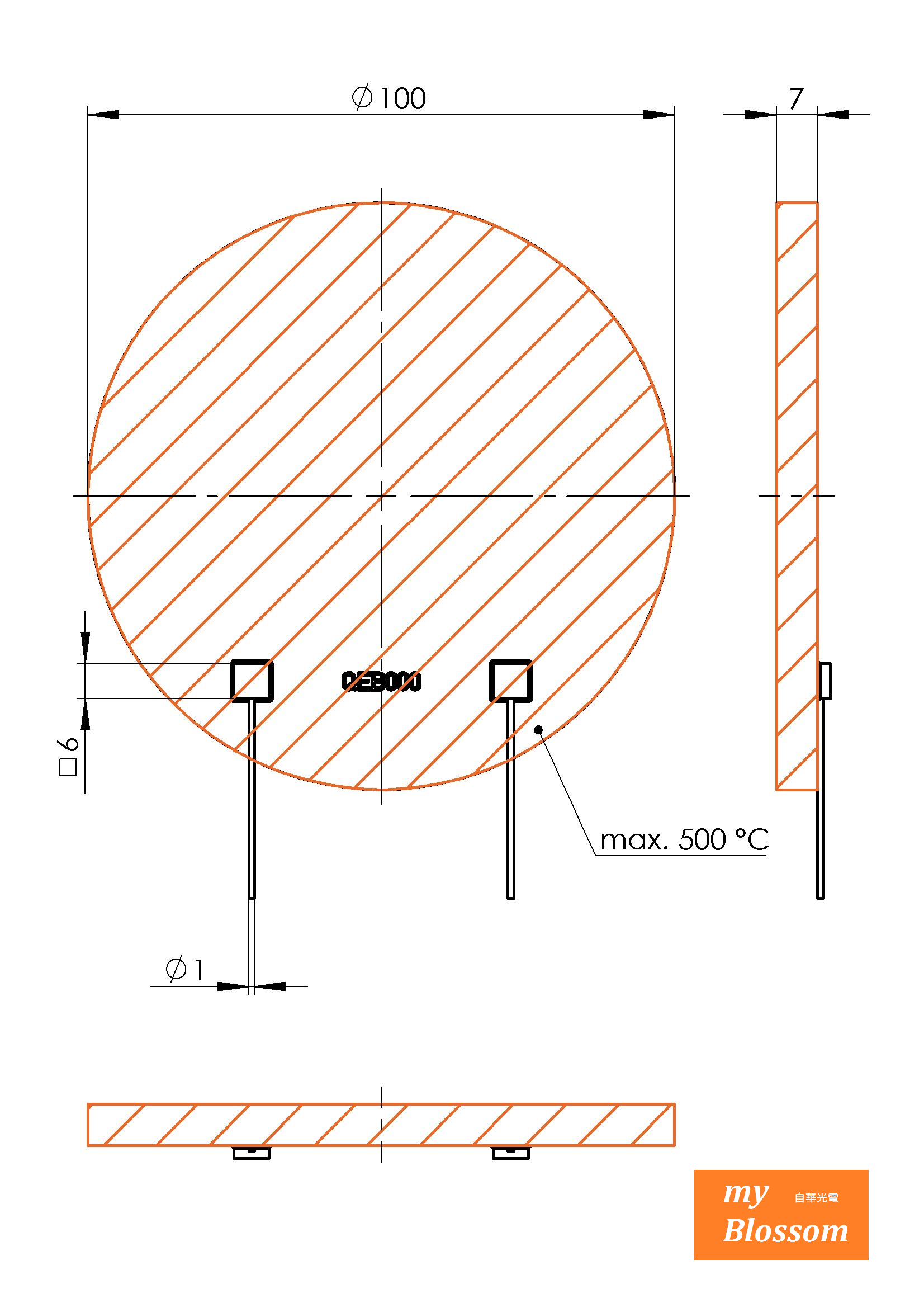

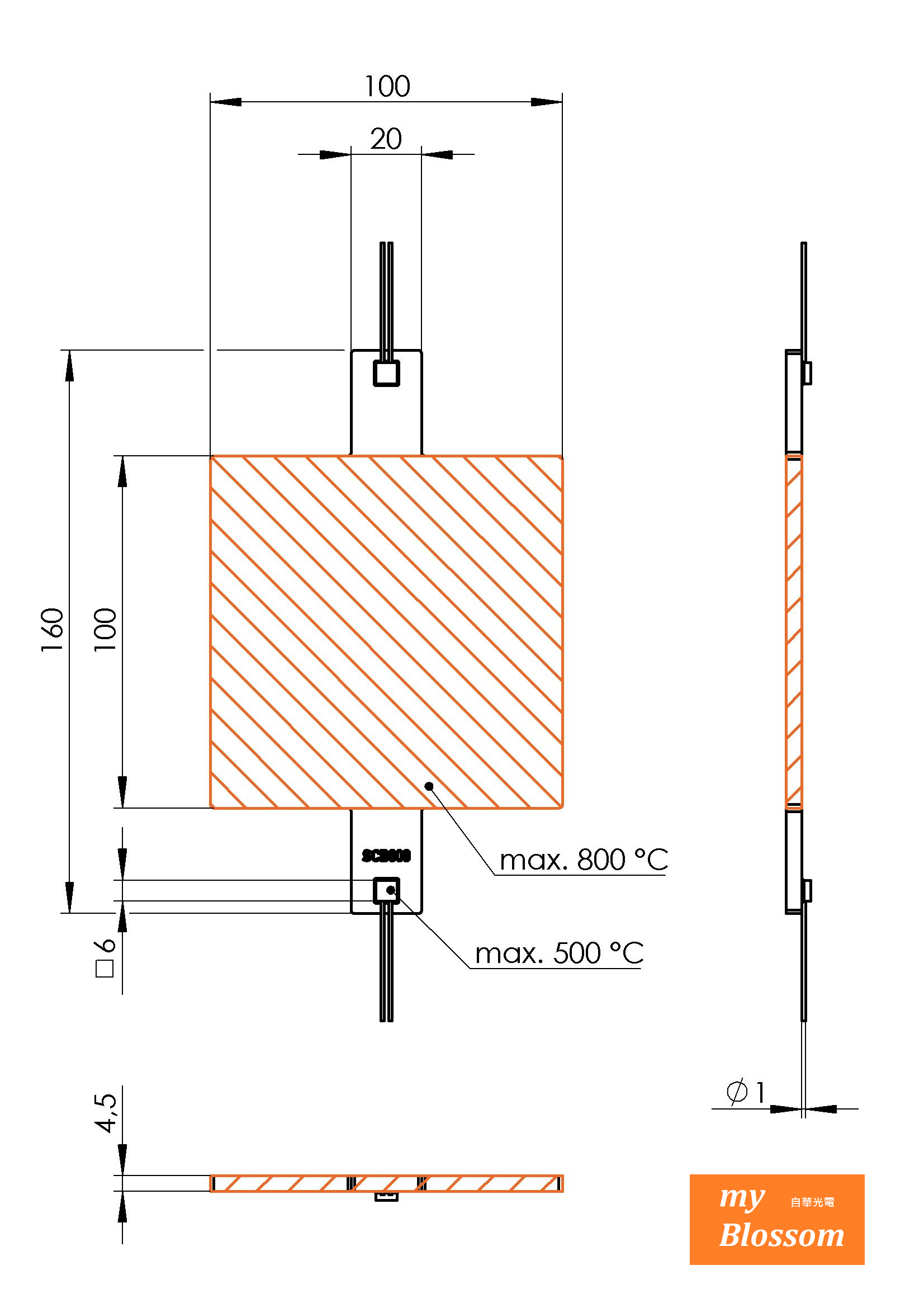

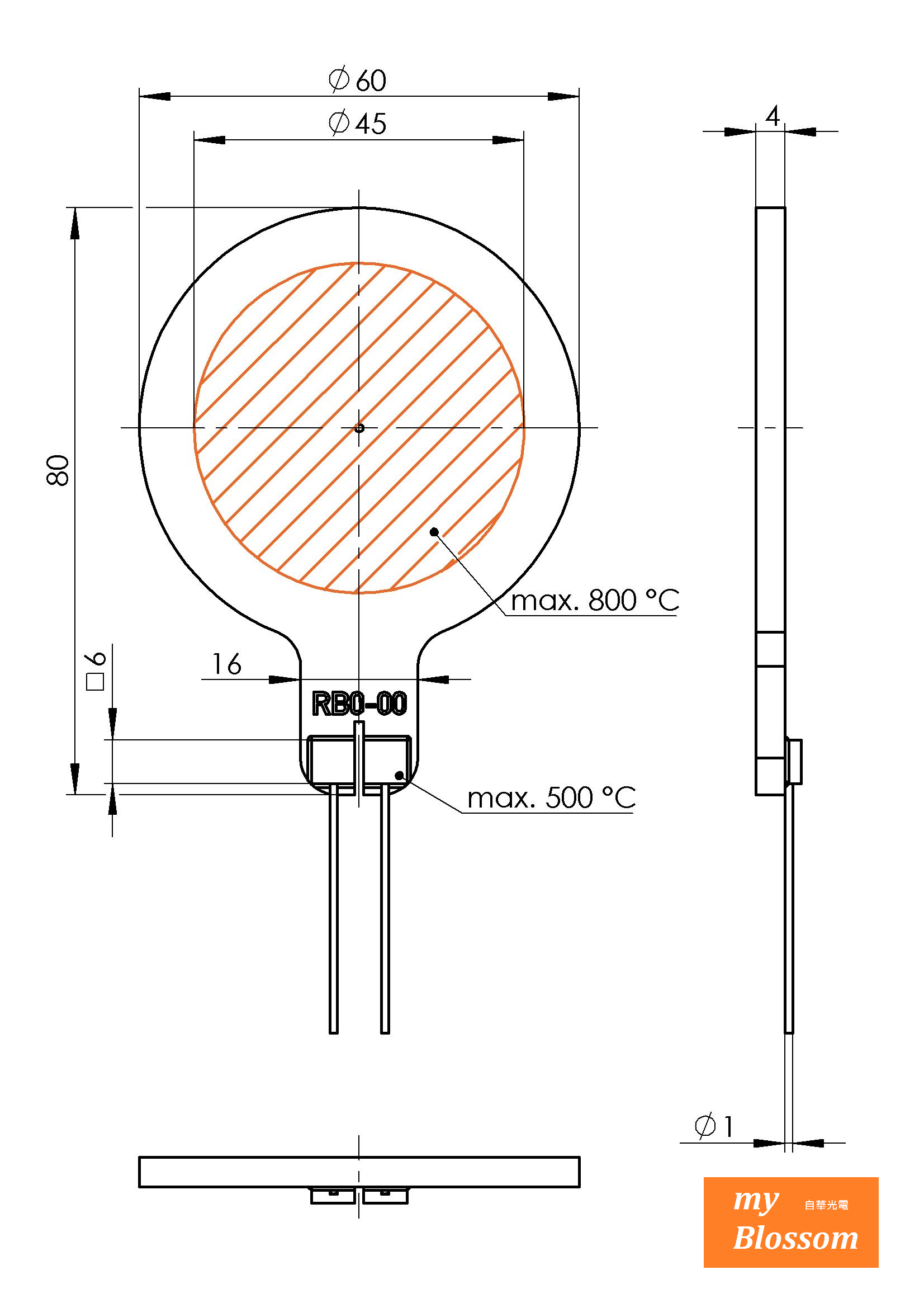

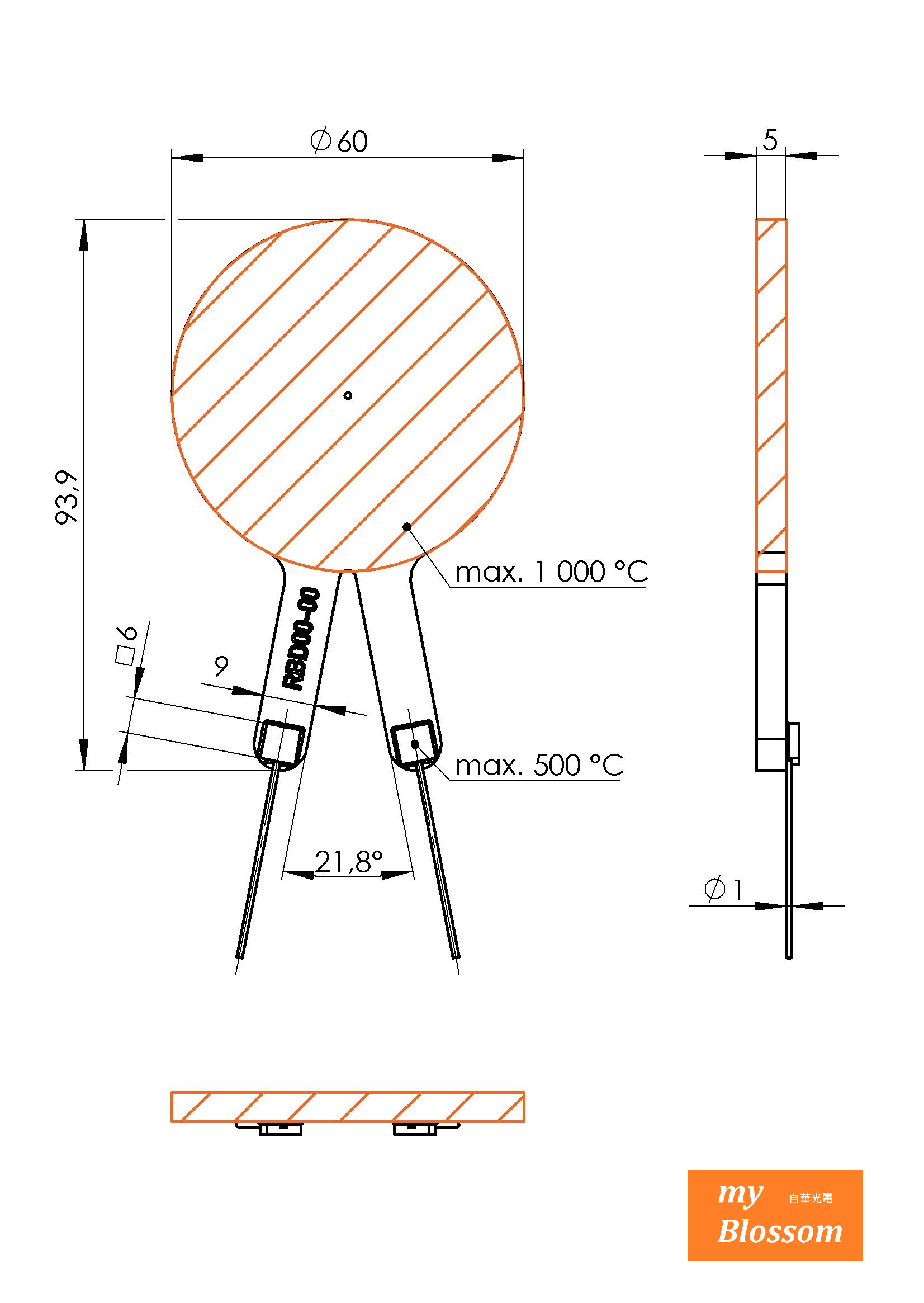

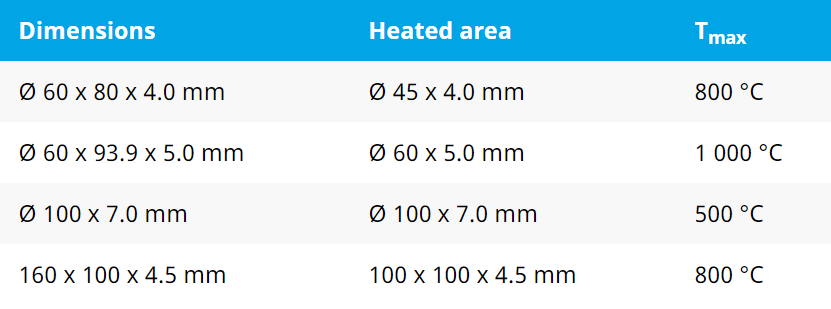

Ceramic hot plates made of silicon nitride can be produced with an outer diameter of 400 mm. Within this diameter any rectangular shape, customized shape or opening is possible. A typical height of the plates is 5 mm. The special properties and low mass of the ceramic material allow fast heating rates, uniform temperature distribution and outstanding precision in control. In comparison to metal the surface of ceramic material stays flat due to its low thermal expansion even when operated with fast changes in temperature. The high strength of hot-pressed silicon nitride guarantees high stress resistance (e. g. with high pressure loads) and excellent wear resistance. We provide hot plates for operating in the open air at temperatures up to 500 °C. Temperatures up to 1 000 °C could be achieved by developing specific technical solutions. However with continuous operation at temperatures > 900 °C a limited service life of 2 500 operating hours is to be expected, whereas with operation under high vacuum even at 1 000 °C the wear and tear is very low.

Customized design

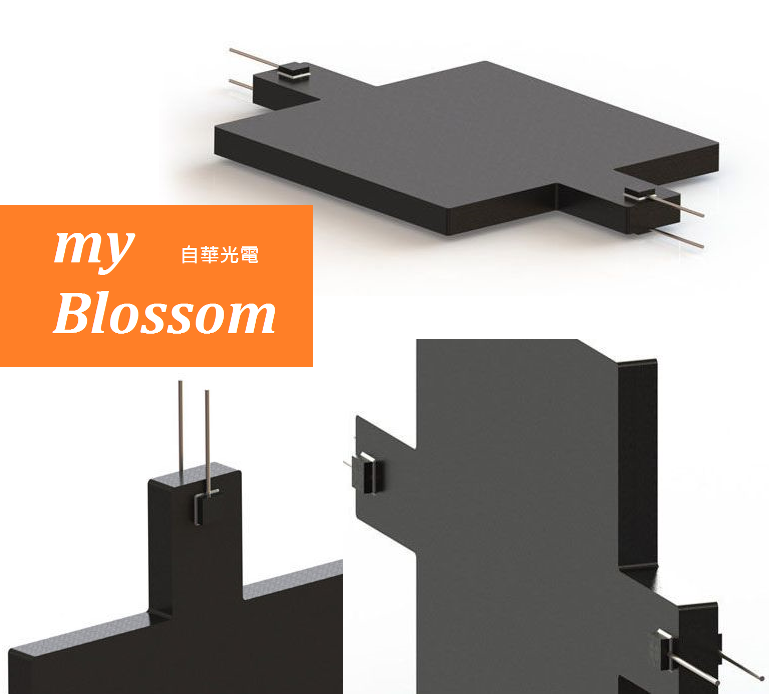

Our in-house designs make any modification in size, configuration, or performance simple and convenient. Mounting-bracket holes and bores for temperature sensors can be added to the design. Laser-cut vacuum grooves can be added as well. Our hot plates come already flat ground, however they can be ground further up to a flatness of < 10 μm to meet specific requirements. A variety of shapes formed to the contour of the product or tool to be heated are possible as well. Furthermore, our ceramic heating conductor with its customized design allows the integration of several heating zones. Devices to compensate for heat loss and an internal test lead for temperature measurement can be easily built in. For operating in high vacuum at up to 1 000 °C a pin contact can be supplied.
