陶瓷彈筒式(卡式)電熱管 Ceramic Cartridge Heater 墨盒加熱器
由氮化矽製成的筒式加熱器通常是矩形的。在炎熱的地區,他們是圓柱形地面適合。可以生產各種尺寸和批量。筒式加熱器有一個圓柱形研磨熱區,工作溫度範圍高達1000°C,接觸區有一個冷區。他們已經製造了多年的小系列,可以配置不同的線路電壓。它們用於金屬筒式加熱器碰到極限或被化學腐蝕的地方。陶瓷材料的特殊性質和低質量允許快速加熱速率,均勻的溫度分佈和出色的控制精度。圍繞陶瓷導體的絕緣陶瓷材料是耐高壓的。

定制設計 Customized design
我們的內部設計使尺寸,配置或性能的任何修改變得簡單和方便。筒式加熱器可以精確地加工以保證合適的熱量傳遞到接收鑽孔。應考慮陶瓷材料與金屬相比的不同熱膨脹。

墨盒加熱器 Ceramic Cartridge Heaters
陶瓷墨盒加熱器 Ceramic Cartridge Heaters
標準陶瓷墨盒加熱器 Ceramic Cartridge Heaters
半導體陶瓷墨盒加熱器 Semiconductor Ceramic Cartridge Heaters
陶瓷加熱器 Ceramic Heating Elements 陶瓷加熱元件



自華光電 - 德國Bach-RC陶瓷加熱器 台灣獨家代理商。
Allen K. Lin | Allen@myblossom.tw | LINE ID: Allen-007 | Wechat ID: Allen-006 | T: 0910-782775

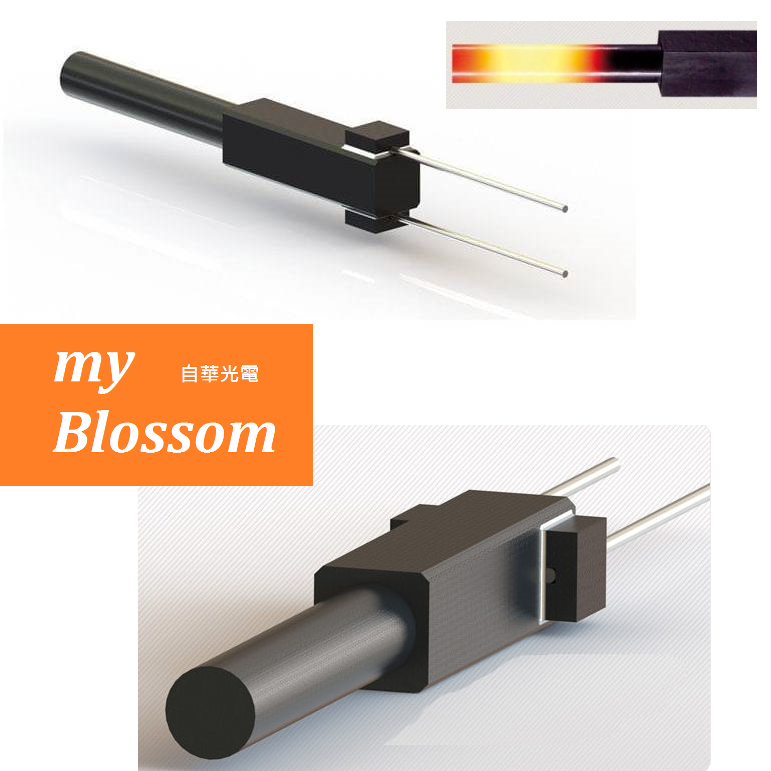

Cartridge heaters

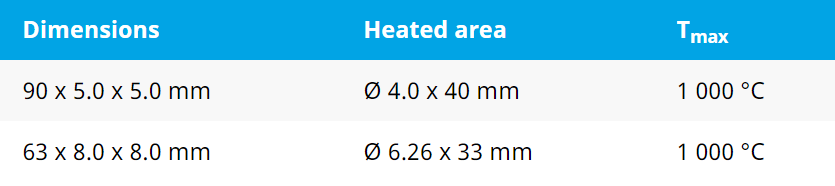

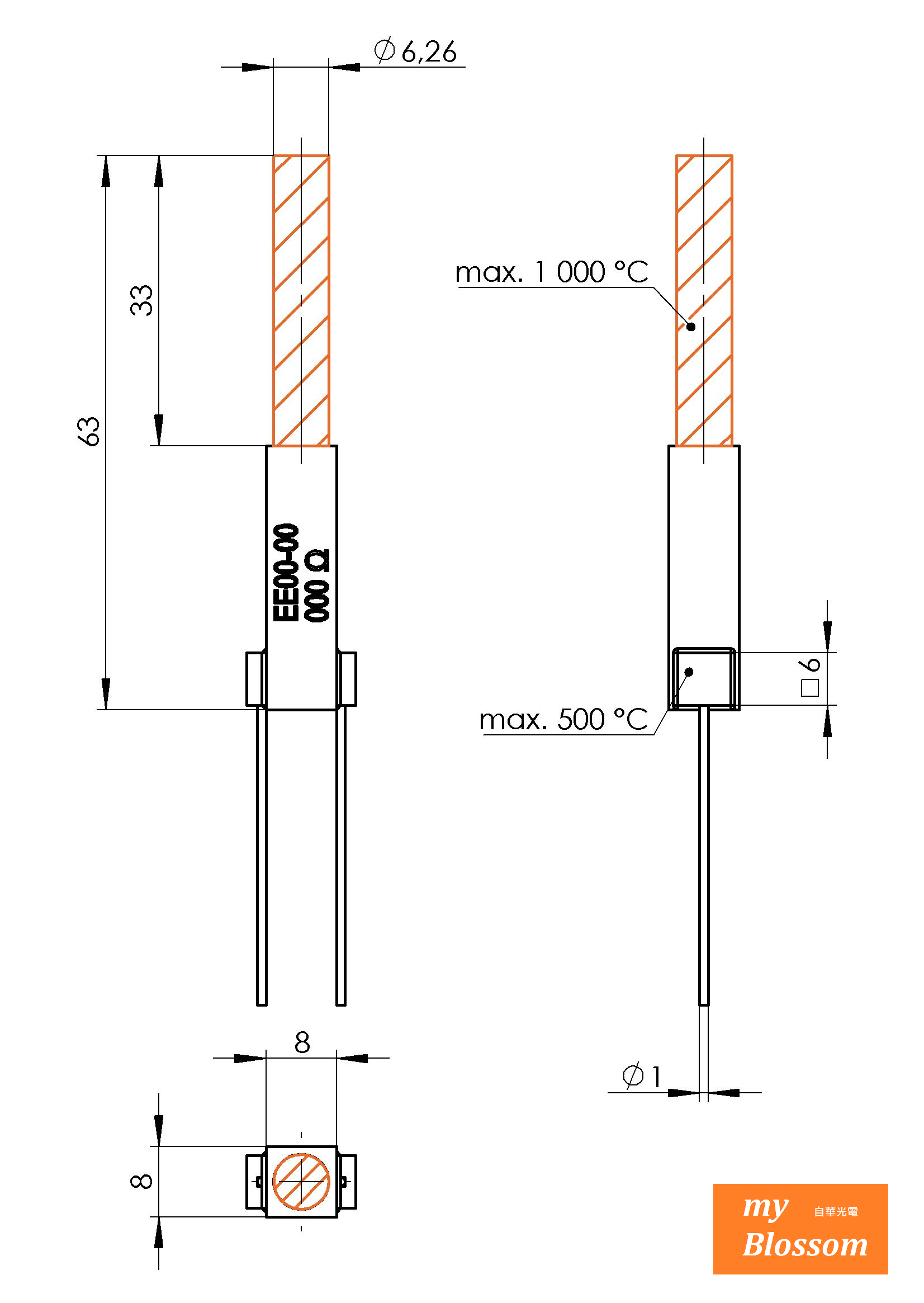

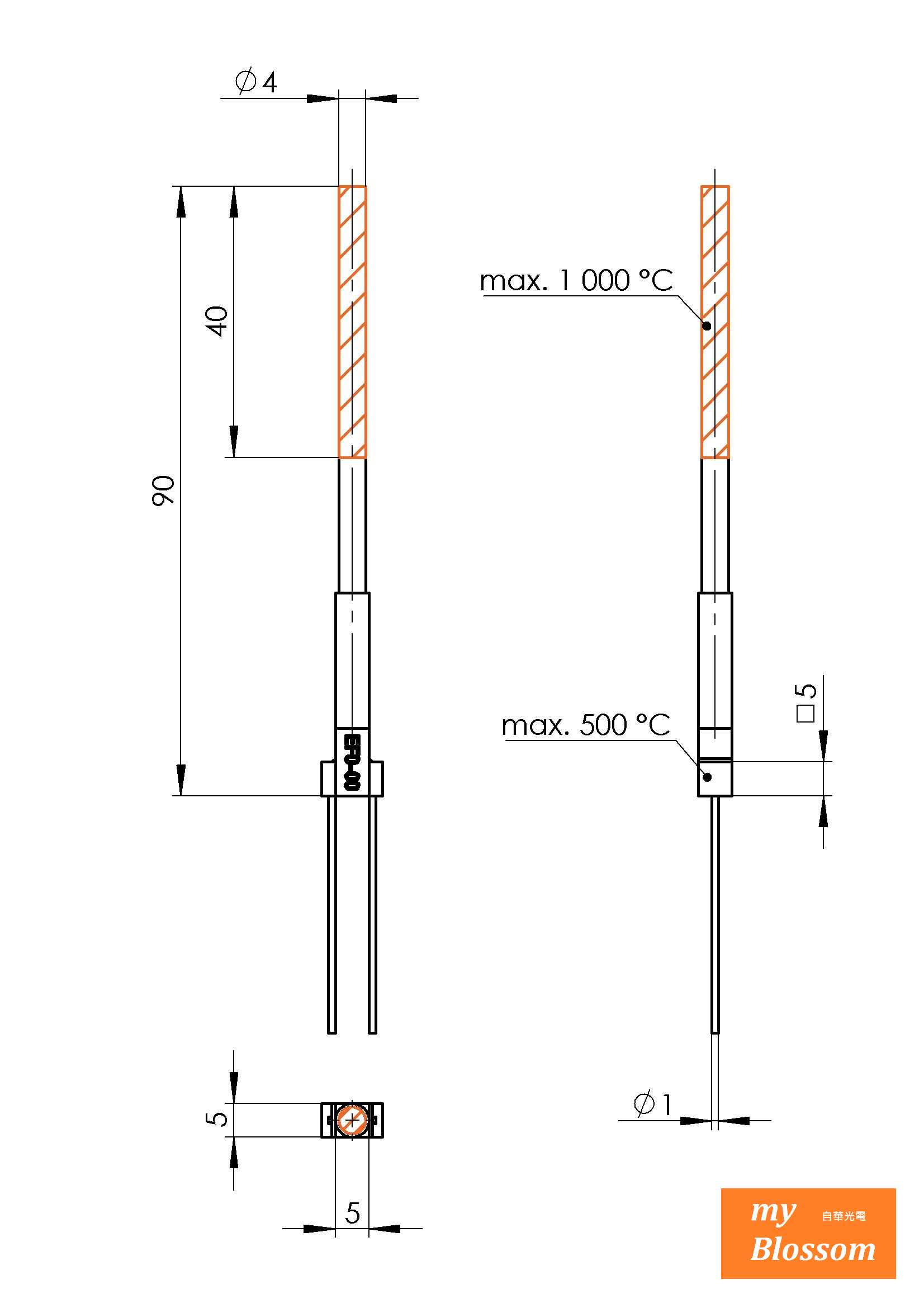

Cartridge heaters made of silicon nitride are normally rectangular. In the hot area they are cylindrically ground to fit. Various dimensions and batch sizes can be produced. The cartridge heaters have a cylindrically ground hot zone with a range of operation up to 1 000 °C and a cold zone in the contact area. They have been manufactured in small series for many years and can be configured for different line voltages. They are used where metal cartridge heaters come up against their limits or are chemically corroded. The special properties and low mass of the ceramic material allow fast heating rates, uniform temperature distribution and outstanding precision in control. The insulating ceramic material surrounding the ceramic conductor is high voltage-resistant.

Customized design
Our in-house designs make any modification in size, configuration, or performance simple and convenient. The cartridge heaters can be processed to fit precisely so that proper heat transfer to the receiving bore hole is guaranteed. The different thermal expansion of ceramic material in comparison to metal should be considered.
