自華光電®陶瓷環形加熱器 myBlossom® Ceramic Heating Rings
環形加熱器 標準品規格
Click here ![](images/linkto.png)
![](images/linkto.png)
![5c02e62906ac8284b55504cc104649f0.png](http://www.myblossom.tw/5c02e62906ac8284b55504cc104649f0.png)
自華光電®陶瓷環形加熱器 現貨超市
myBlossom® Ceramic Heating Rings
自華光電®代理歐洲最大標準陶瓷加熱器現貨超市。
陶瓷環形加熱器 Ceramic Heating Rings
由氮化矽製成的陶瓷加熱環可以製造成外徑高達300mm。 戒指的典型範圍是5毫米。 陶瓷材料的良好導熱性和低熱質量使得加熱速率非常快,溫度分佈均勻,控制精度高。 熱壓氮化矽的高強度保證了高應力耐受性和短時間加工時的優異耐磨性。 我們提供的加熱環可以在高達500°C的溫度下在露天作業。 通過開發特定的技術解決方案可以達到更高的溫度(如果需要)。
陶瓷環形加熱器 客製化設計 Customized design
我們的內部設計使得尺寸(內徑和外徑)或性能的任何改變都變得簡單和方便。 可以在設計中添加用於溫度調節的安裝支架孔和開口。 我們的加熱環已經是平坦的地面,然而它們可以進一步研磨到<10μm的平面度以滿足特定的要求。 也可以形成各種形狀的待加工產品或工具的輪廓。
![3492c8e22b37fadac5149c09800c27dd.jpg](http://www.myblossom.tw/editor_images/3492c8e22b37fadac5149c09800c27dd.jpg)
自華光電 - 德國Bach-RC陶瓷加熱器 台灣獨家代理商暨大陸代理商。
Allen K. Lin | Allen@myblossom.tw | LINE ID: Allen-007 | Wechat ID: Allen-006 | T: 0910-782775
![4e9cc2110b3d9e4ad45b5a4dafd7473b.jpg](http://www.myblossom.tw/editor_images/4e9cc2110b3d9e4ad45b5a4dafd7473b.jpg)
![289062eb5e2432aa9482ffc7b2d80754.png](http://www.myblossom.tw/289062eb5e2432aa9482ffc7b2d80754.png)
![09d24301e2e642dbdb37ed8a05169fdb.png](http://www.myblossom.tw/09d24301e2e642dbdb37ed8a05169fdb.png)
![ef3b95ab2fb59a3ce5d0dccba7d2b659.png](http://www.myblossom.tw/ef3b95ab2fb59a3ce5d0dccba7d2b659.png)
![aeea79bfb6c9a6a119c1b75a7328dd0c.png](http://www.myblossom.tw/aeea79bfb6c9a6a119c1b75a7328dd0c.png)
myBlossom® Ceramic Heating Rings

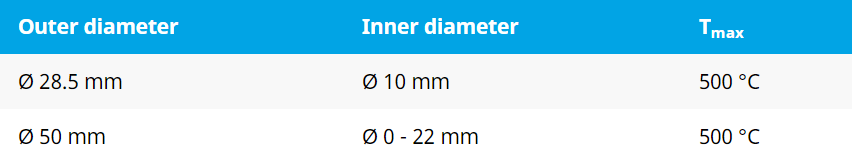

Heating Rings List
Click here ![](images/linkto.png)
![](images/linkto.png)
myBlossom® Ceramic Heating Rings

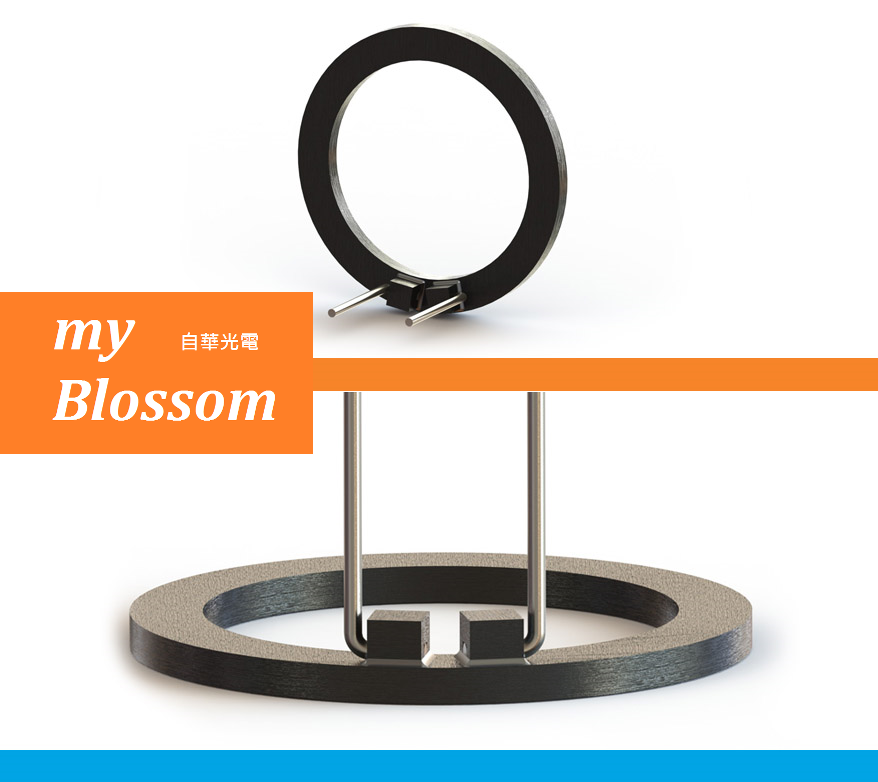

Ceramic Heating rings
Ceramic heating rings made of silicon nitride can be produced with an outer diameter of up to 300 mm. A typical extent of the rings is 5 mm. The good thermal conduction and the low thermal mass of the ceramic material allow extremely fast heating rates, a uniform temperature distribution and high control accuracy. The high strength of hot-pressed silicon nitride guarantees high stress resistance and excellent wear resistance at short processing times. We provide heating rings for operating in the open air at temperatures up to 500 °C. Higher temperatures (if required) could be achieved by developing specific technical solutions.
Customized design
Our in-house designs make any modification in size (inner and outer diameter) or performance simple and convenient. Mounting-bracket holes and openings for temperature regulation can be added to the design. Our heating rings come already flat ground, however they can be ground further up to a flatness of < 10 μm to meet specific requirements. A variety of shapes formed to the contour of the product or tool to be heated are possible as well.
