自華光電®標準合成熔融石英晶圓 myBlossom® Fused Silica Wafer


自華光電®標準合成熔融石英晶圓 現貨超市
myBlossom® Fused Silica Wafer




除了上述標準合成熔融石英晶圓 現貨供應外,根據客戶的規格生產客製化石英晶圓(不同厚度,直徑與規格)。


自華光電 - 德國Plan Optik AG 玻璃晶圓/石英晶圓 台灣獨家代理商。
Allen K. Lin | Allen@myblossom.tw | LINE ID: Allen-007 | Wechat ID: Allen-006 | T: 0910-782775

myBlossom® Fused Silica Wafer

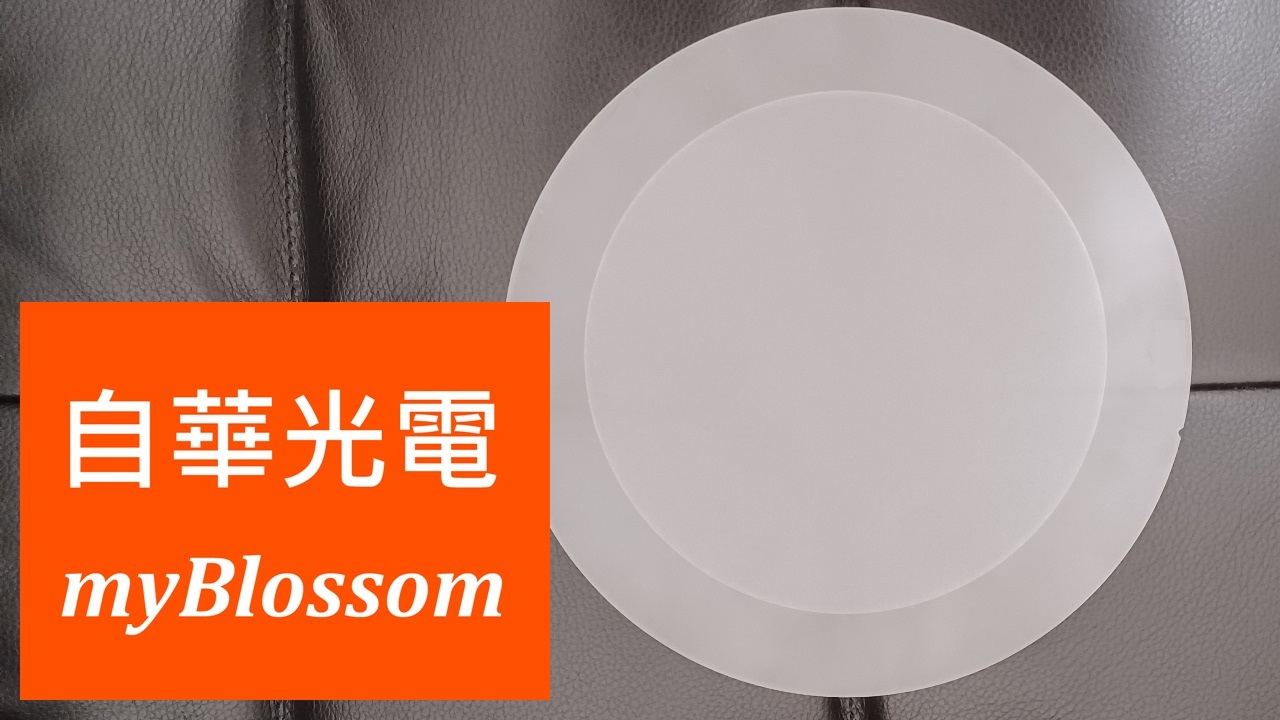

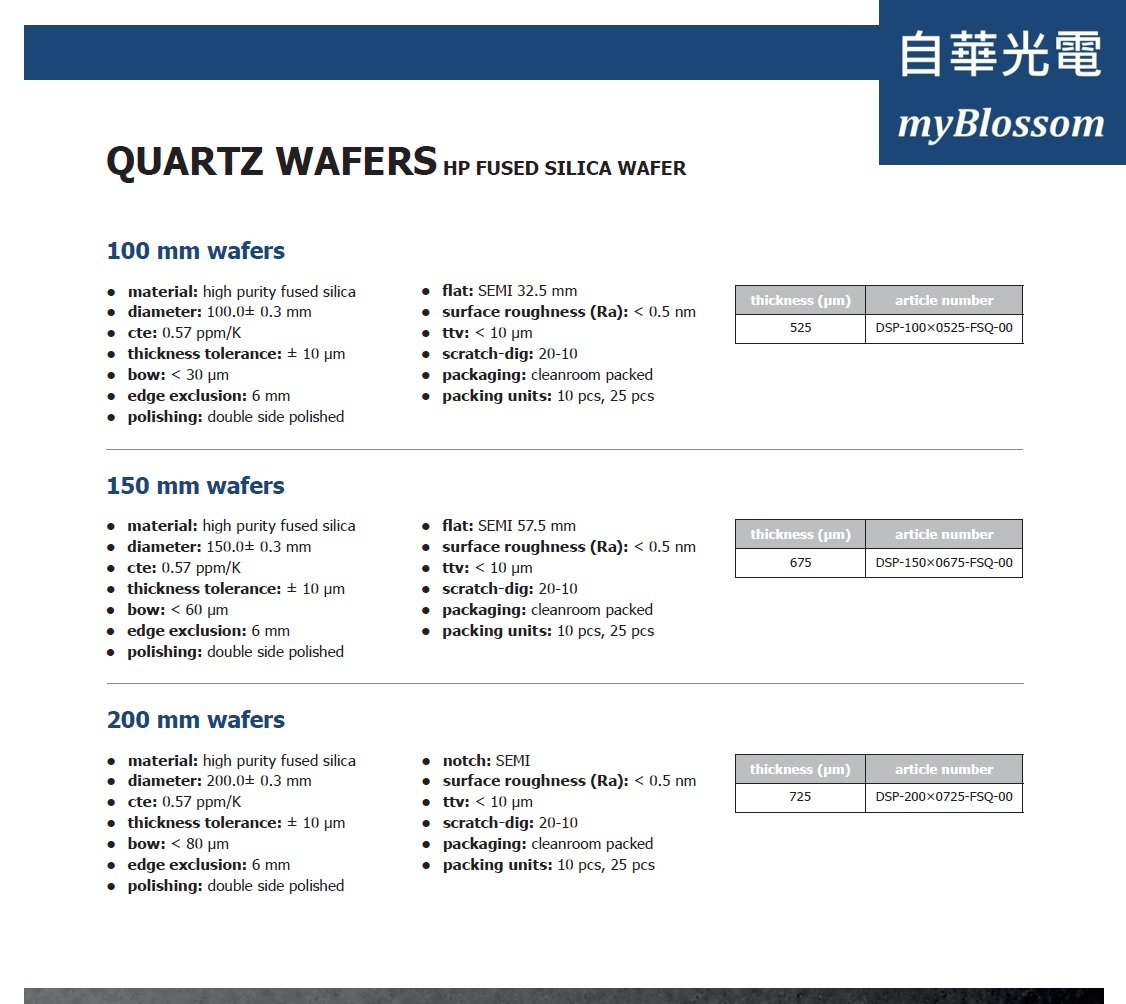

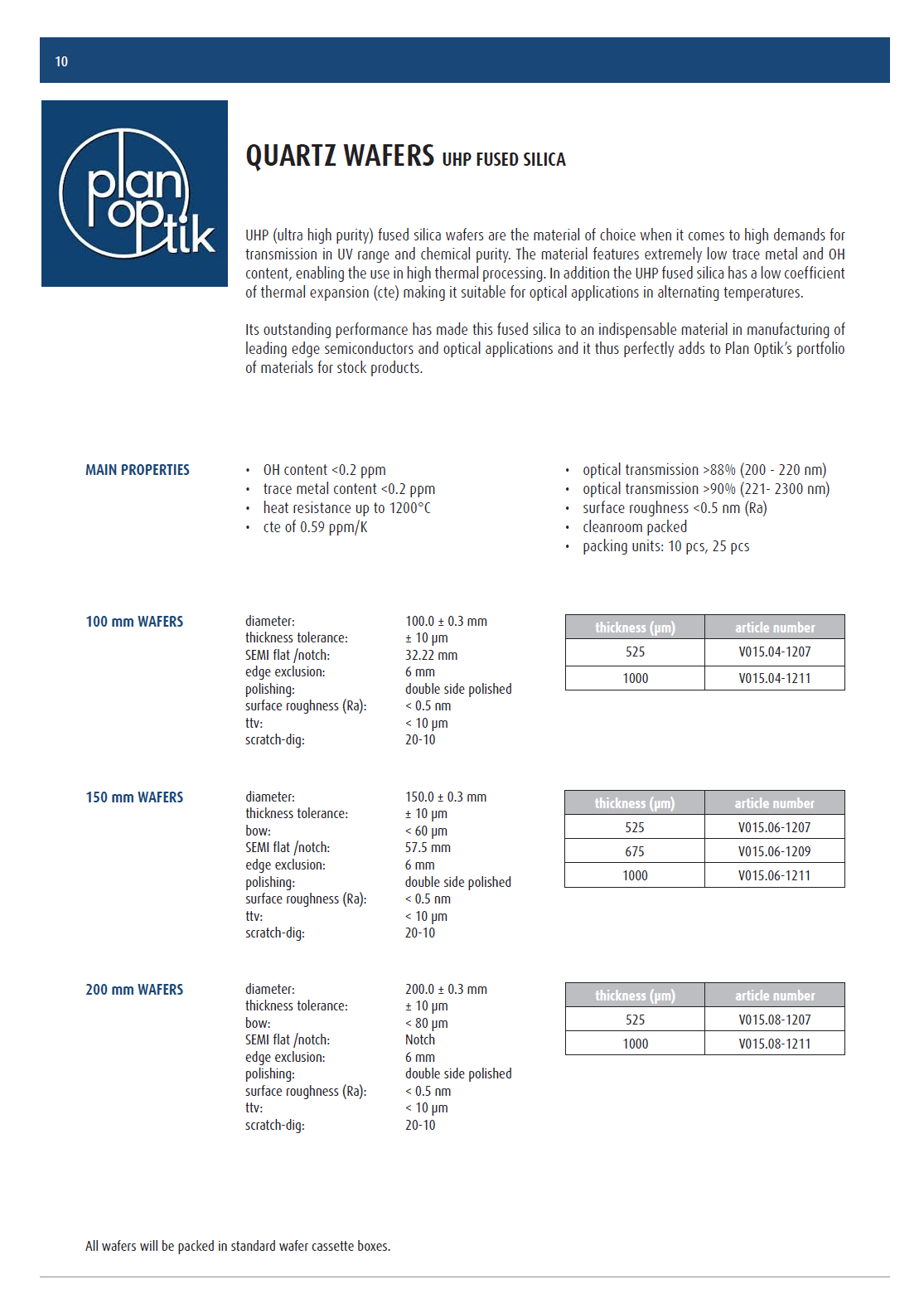

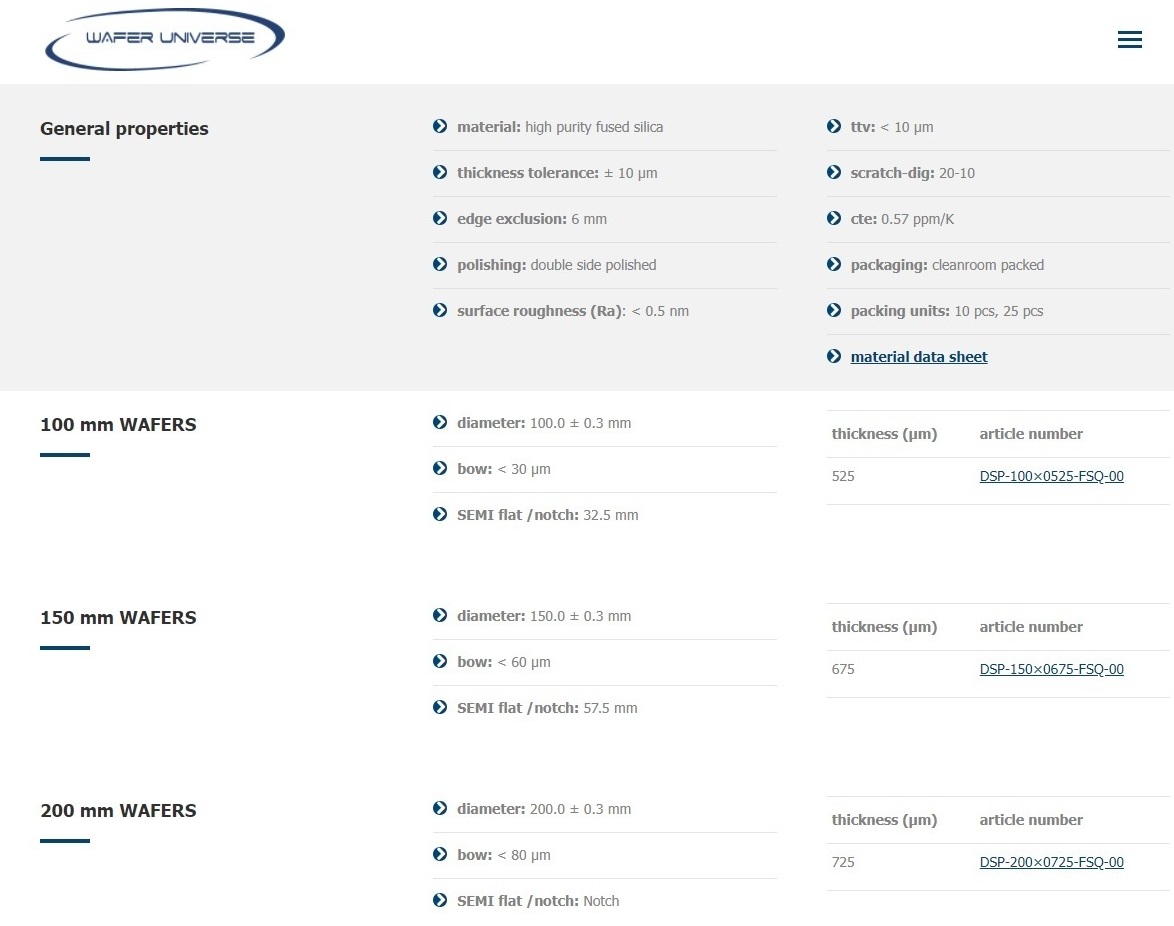

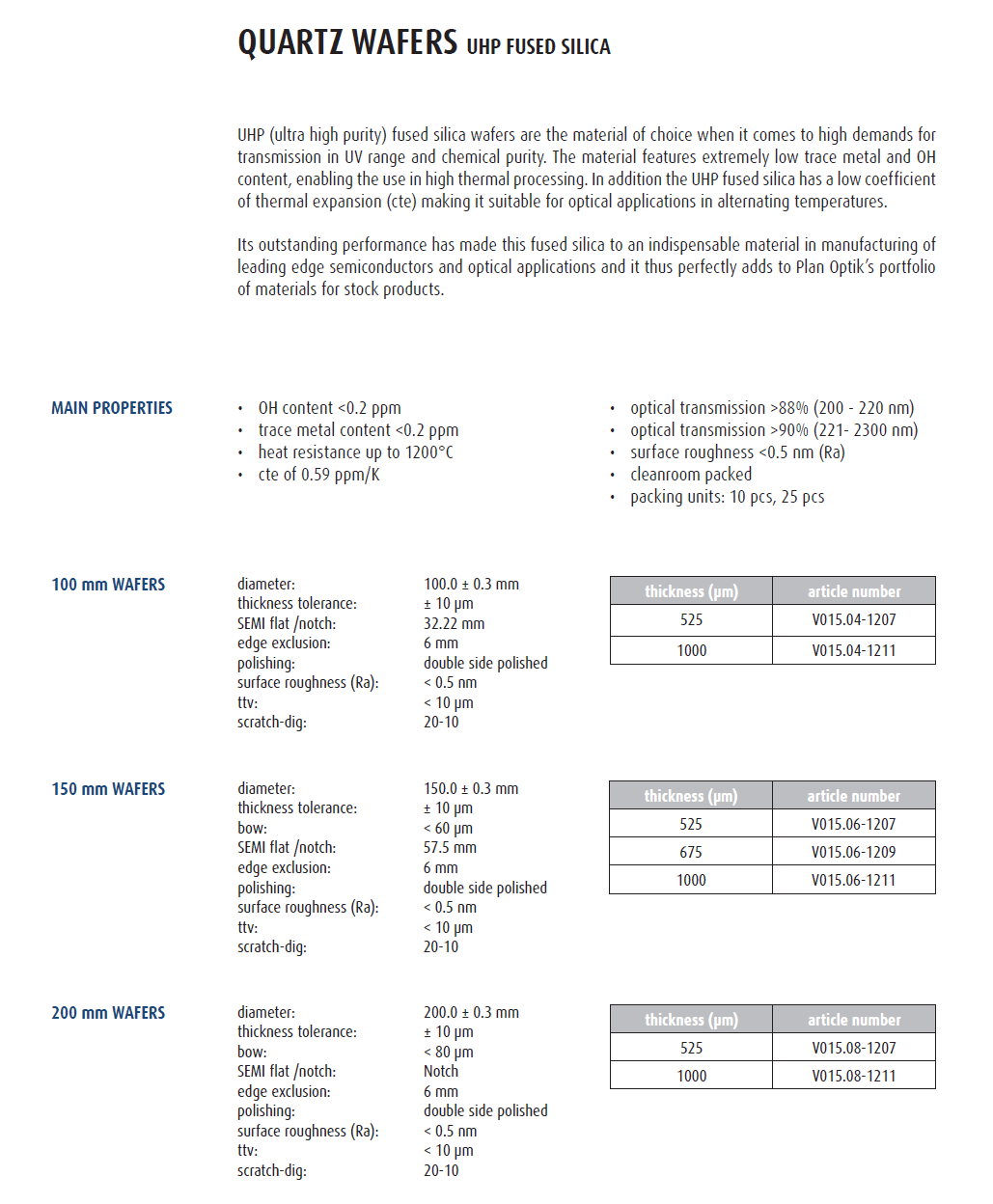

myBlossom® Standard Fused Silica Wafer

Standard Quartz Wafer, UHP(ultra high purity) fused silica

UHP (ultra high purity) fused silica wafers are the material of choice when it comes to high demands for transmission in UV range and chemical purity. The material features extremely low trace metal and OH content, enabling the use in high thermal processing. In addition the UHP fused silica has a low coefficient of thermal expansion (cte) making it suitable for optical applications in alternating temperatures.

Its outstanding performance has made this fused silica to an indispensable material in manufacturing of leading edge semiconductors and optical applications and it thus perfectly adds to Plan Optik’s portfolio of materials for stock products.

Main Properties

• OH content < 0.2ppm

• trace metal content < 0.2ppm

• heat resistance up to 1200°C

• cte of 0.59 ppm/K

• optical transmission >88% (200 - 220 nm)

• optical transmission >90% (221- 2300 nm)

• surface roughness < 0.5nm (Ra)

• cleanroom packed

• packing units: 10 pcs, 25 pcs

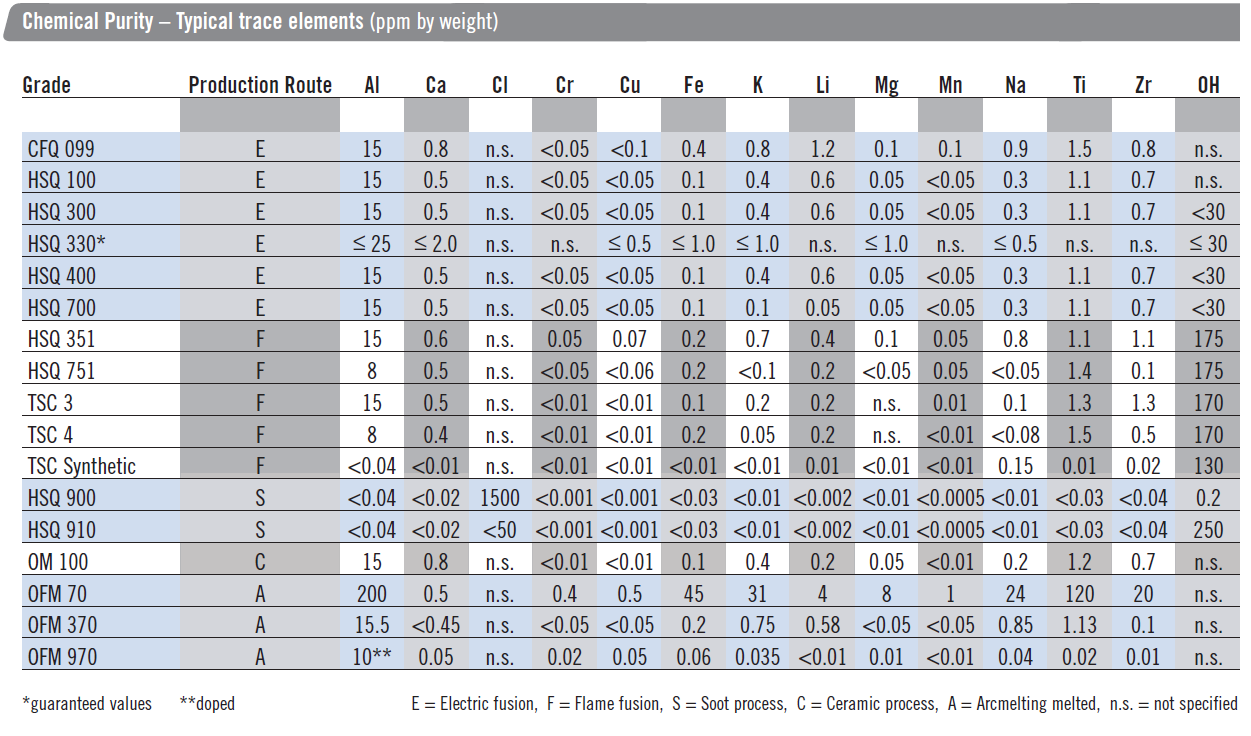

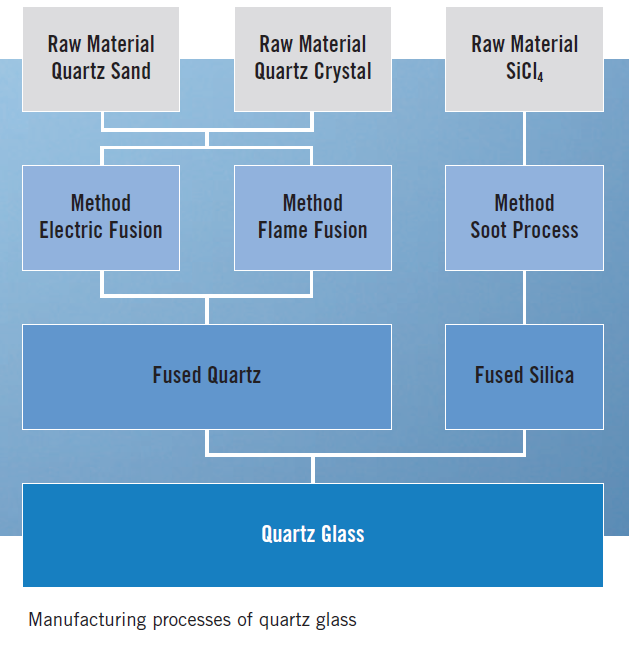

Heraeus Conamic,HCA

Heraeus Conamic,HCA

Every facet of modern technology reaching from the smallest microchip to the largest communication network has been touched by quartz or fused silica at some point during its creation.

With over 100 years of expertise in innovating quartz and fused silica solutions, Heraeus provides breakthrough solutions for the world’s most challenging applications in the semiconductor and photonics industry. Additionally, high-end materials like ceramics and composites are within our material focus. Heraeus has the knowledge and expertise to partner with you to take on the challenges of your industry today and tomorrow.
